MENA Mobility is a leading supplier of electric vehicle (EV) charging technology and infrastructure in the UAE. We offer a range of industry-leading EV chargers and charging stations, including AC Chargers and DC Fast Chargers, from pioneering Swedish technology group ABB Global. We can implement EV charging management solutions for commercial, industrial and public transportation fleets, public parking and destination charging management systems, and roadside fast charging systems.

Introduction to EV charging

An electric vehicle charging station, also called EV charging station, electric recharging point, charging point, electronic charging station (ECS), and electric vehicle supply equipment (EVSE), is an appliance that supplies electric energy for the charging of electric vehicles, including electric passenger vehicles, commercial vehicles and plug-in hybrid vehicles (PHEV).

Types of EV Chargers

AC Chargers

AC chargers are the simplest and most common type of EV charger, found in most homes and private spaces due to their low cost and straightforward installation. When an AC charger charges an electric vehicle, the electricity is converted into a DC current by the vehicle’s onboard rectifier. AC charging rates are limited by the capacity of the EV's onboard rectifier, typically between 3.7 kW to 22 kW.

DC chargers

In DC chargers, electricity is converted from AC to DC by the charging station, which can handle a much higher capacity than an EV’s onboard rectifier. DC Chargers range from 24 kW to 350 kW for superfast charging. As a result, vehicles using DC chargers will charge faster.

Electric Vehicle Supply Equipment (EVSE)

An electric vehicle charging station, also called EV charging station, electric recharging point, charging point, electronic charging station (ECS), and electric vehicle supply equipment (EVSE), is an appliance that supplies electric energy for the recharging of plug-in electric vehicles—including electric passenger cars, carts and utility vehicles, and plug-in hybrid vehicles (PHEV).

AC Wall Box

The Terra AC Wallbox provides tailored, intelligent, and networked charging solutions for any business, home or office location. It is available from a range of 3.7kW to 22kW, depending upon customer requirements and load availability at site.

• Single Phase – 3.7kW/16A to 7.4kW/32A
• Three Phase – 11kW/16A to 22kW/32A
• Type 2 Socket with or without shutter and with 5m cable
• With display & MID certification
• Wi-Fi, Ethernet (RJ45), Bluetooth, RS485, 4G/3G
• RFID card
• OCPP 1.6 and RS485/P1 for energy meter connection
• App, ABB web portal

The comprehensive range of AC Chargers, with single and dual charging capabilities, suitable for domestic and public charging applications is outlined below:

DC Wall Box

The 24kW Terra DC Wallbox is a compact EV charger for residential, office, commercial, and public applications. It is a future-proof investment supporting current and future EVs with high voltage charging (up to 920VDC), suitable for a wide variety of use cases, in an ultra-compact footprint that is safe and reliable for residential use too.

• Input voltage: 3 phase 400 V AC +/-10 % (50/60 Hz)
• Charging mode: CCS 2, CHAdeMO
• Number of outputs:
  • Single output CCS 2 or CHAdeMO
  • Dual output CHAdeMO + CCS 2
• Output Power rating: 0 to 22.5 kW, 24 kW (peak)
• Output current: 60A DC
• Output voltage:
  • CCS: 150 to 920 V DC
  • CHAdeMO: 150 to 500 V DC
• No. of EV served at a time: 1 Vehicle
• Dimensions (H x W x D): 770 mm x 584 mm x 294 mm

DC Fast Chargers

Terra 54/54HV multi-standard DC charging station is the best-selling 50 kW DC charging station in Europe and North America. Terra 54 enables continuous charging at full 50 kW at 150 – 500 V, while 150 – 920 V is supported by Terra 54HV. Suitable for commercial vehicle application and preferable for fleet solution.

• Input voltage: 3 phase 400 V AC +/-10 % (50/60 Hz)
• Number of outputs: Multiple combinations of charger units with CCS2, CHAdeMO and AC socket/Cable are available
• Output power rating: 50 Kw
• AC Output power rating: 22kW/43kW (Optional)
• Output voltage @ Terra 54: 150 to 500V DC
• Output voltage @ Terra 54HV: 150 to 920V DC
• No. of EV served at a time: 2 vehicles
• Dimensions (H x W x D): 1900 mm x 565 mm x 780 mm
• Network Connection: Internet access via 4G/3G/Ethernet (RJ45)
• User Interface: 7" LCD high-contrast touchscreen
• Communication Protocols: OCPP 1.5/1.6/2.0 and OPC-UA

Terra 94 to 184 multi-standard DC charging station including the Terra 94, Terra 124, Terra 184, are an extension of the DC fast charger’s product line. They are designed for convenient charging of all electric vehicles, including future models with high voltage battery systems. The compact size makes it perfect for urban use, with flexibility to upgrade charging power up to 180kW and ability to charge up to 3 vehicles at the same time.

• Input Voltage: 3 phase 400 V AC +/-10 % (50/60 Hz)
• Number of outputs: Multiple combinations of charger units with CCS2, CHAdeMO and AC socket are available.
• DC Output power rating: 90kW to 180kW
• AC Output power rating: 22kW (Optional)
• DC Output voltage: 150-920V DC
• No. of EV served at a time: 3 vehicles
• Dimensions (H x W x D): 1900 mm x 565 mm x 880 mm
• Network Connection: Internet access via 4G/3G/Ethernet (RJ45)
• User Interface: 7" LCD high-contrast touchscreen
• Communication Protocols: OCPP 1.5/1.6/2.0 and OPC-UA

DC High-Power Charger

The Terra high-power DC charging station is a combination of charge post and power cabinet, and is a modular solution providing a minimum 160kW output. It can be further upgraded to 350kW and 600kW as per customer requirements by adding an additional power cabinet. These high-power chargers are ideally suited for highway corridor and fast charging operations. Infrastructure needs are growing, therefore more fast charging points with higher power demands will be needed. ABB has solutions today that will enable this future.

• Input voltage range:3 phase 400 V AC +/-10 % (50/60 Hz)
• Number of outputs
  • Single output CCS2
  • Dual output CHAdeMO + CCS 2
• Output Power rating: 175kW to 350kW (Peak) per charge post
• Output voltage: 150 to 920 V DC
• No. of EV served at a time: 1 Vehicle per Charge post
• Dimensions (H x W x D):
  • Charge post: 2390mm x 620mm x 440 mm
  • Power Cabinet: 2092mm x 1170mm x 770 mm

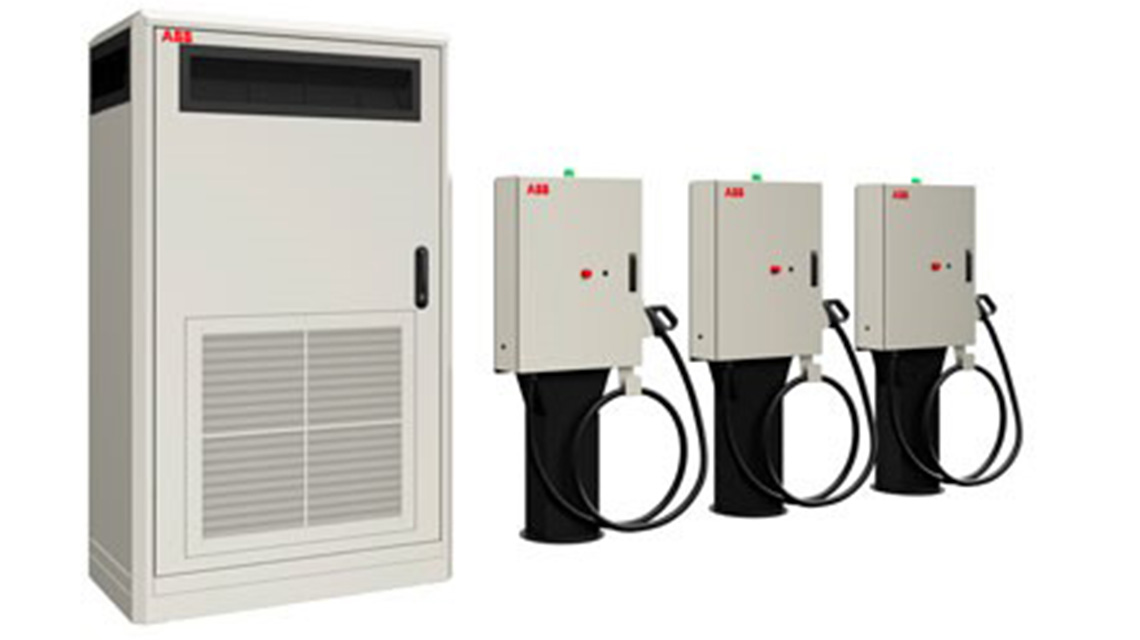

Fleet Charging Solution

Overnight Charging products offer an intelligent and cost-effective solution to charge larger fleets of electric buses and trucks during the night, ensuring zero-emission transportation during the day. Due to their large voltage range, the DC wall box (24 kW) and Terra 54HV (50 kW) are perfectly suited to charge electric buses and trucks. For higher power, the products with 100 kW and 150 kW including sequential charging are specially designed to charge larger fleets of electric vehicles in the most optimal way.

• Input voltage range: 3 Phase 400 V AC +/-10 % (50/60 Hz)
• Connection method between bus and charger: CCS 1 or CCS 2
• Output power rating: 100kW, 150kW
• Output voltage: 150 to 850V DC
• Network connection: GSM/3G modem 10/100 base-T Ethernet
• DC connection standard: IEC 61851-23/DIN 70121 ISO 15118

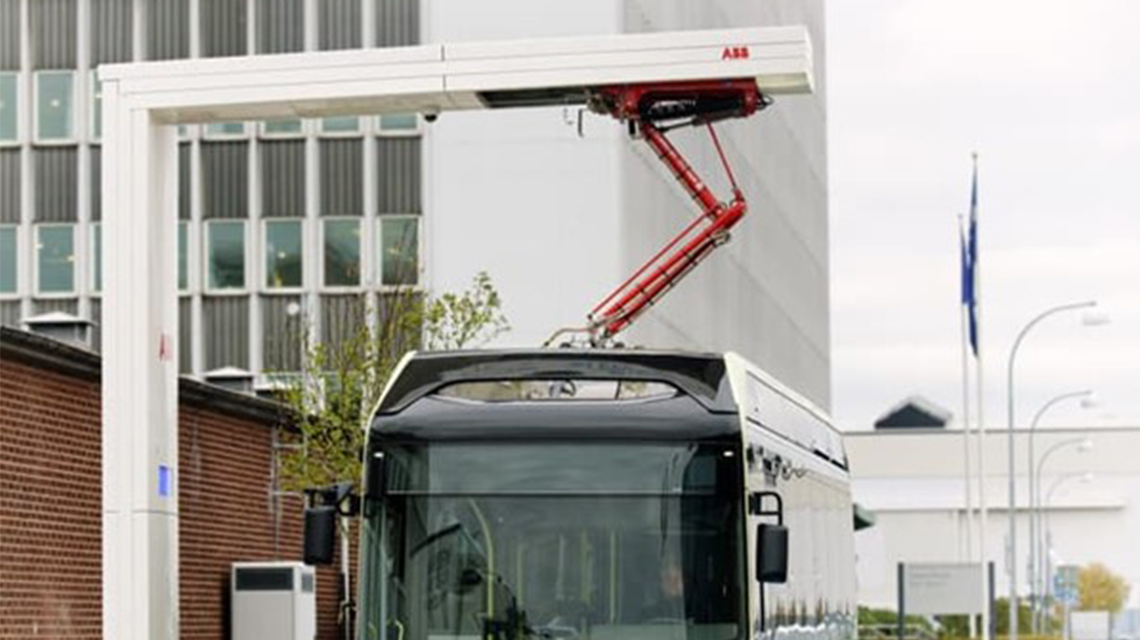

Electric Bus Pantograph

HVC Opportunity Charging products offer an ideal electric bus pantograph solution equipped with a roof-mounted pantograph. This allows for charging larger fleets of electric buses overnight in a range of 50-150 kW per vehicle, and during the day with 150 kW up to 600 kW for opportunity charging whilst enroute.

• Input voltage range: 3 Phase 400 V AC +/-10 % (50/60 Hz)
• Connection method between bus and charger: 4-pole automatic connection system
• Output power rating: 150kW, 300kW, 450kW, 600kW
• Output voltage: 150 to 850V DC, 150 – 920 VDC (extended voltage range option)
• Network connection: GSM/3G modem 10/100 base-T Ethernet
• DC connection standard: IEC 61851-23/DIN 70121 ISO 15118
